Bifacial module technology combined with single-axis tracking has become the default configuration for utility-scale solar in Europe over the past three years. The combination delivers higher energy yield per installed kilowatt-peak than fixed-tilt monofacial systems — but it also introduces design complexity that not every EPC contractor handles with equal rigour.
For investors and developers, understanding where the design decisions are made — and what can go wrong — is directly relevant to long-term asset performance.
How bifacial gain is modelled
A bifacial module captures light on both the front face and the rear face. The rear-side contribution — the bifacial gain — depends on the albedo of the ground surface, the height of the module above the ground, row spacing, and structural shading from the mounting system.
Bifacial gain in European projects typically ranges from 5% to 15% of front-side output depending on site conditions. The variance matters because gain is modelled differently by different software tools, and the assumptions behind the model are not always disclosed in the project documentation.
A common issue in TDD engagements: the yield model shows 12% bifacial gain, but the row pitch design results in significant rear-side shading from the tracker structure. Corrected gain is closer to 7%. On a 100 MWp project, that difference affects the revenue model meaningfully over a 25-year asset life.

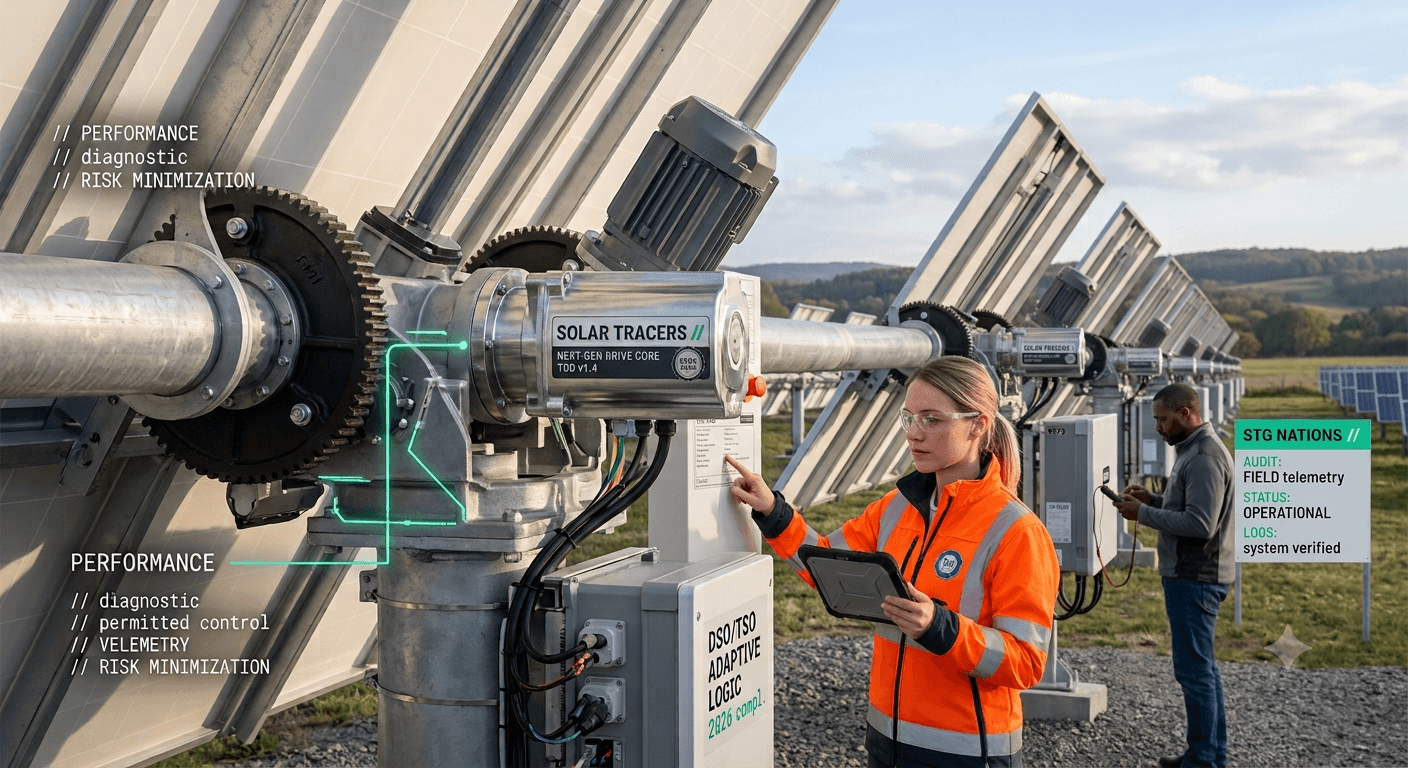

Tracker reliability: what the O&M data shows
Single-axis trackers improve yield but add mechanical complexity. Motor failures, communication failures between tracker controllers, and software faults in tracking algorithms are the most common O&M issues in operating European solar assets.
Tracker availability is rarely disclosed in seller data rooms unless specifically requested. For operating assets, STG Nations requests tracker availability logs as a standard item in our TDD document checklist. Availability below 98% on an annualised basis is a red flag.
The electrical design decisions that affect degradation
String sizing, cable cross-sections, and combiner box configurations affect both initial performance and long-term degradation. Undersized DC cables increase resistive losses. Incorrect string configurations create mismatch losses that compound with module degradation over time.
These are not visible in the data room. They require a site inspection with access to the inverter performance data and, where possible, IV curve measurements on representative strings.
Design review as a risk management tool
For projects in development, an independent design review by an engineer not involved in EPC execution identifies these issues before construction, when corrections are inexpensive. For acquisitions, a site inspection combined with performance data analysis quantifies the risk of existing design decisions on future yield.
